Light Fixtures

Light Fixtures

CRW provides Versa-Clean, Teardrop or Flow-thru light fixtures for every application. All fixtures are sealed to maintain required pressure.

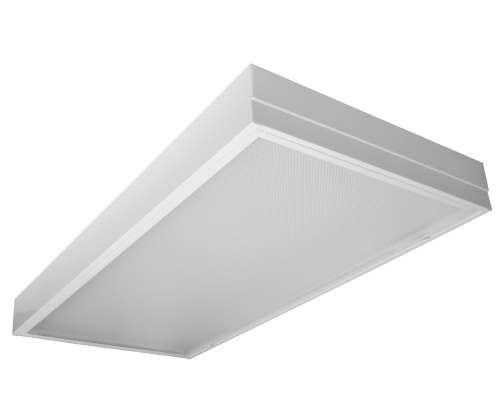

Versa-Clean Fixtures Features:

  • 20-gauge Cold Rolled Steel
  • Square sided fixture
  • Neoprene gasketing
  • Clear, prismatic lens at 0.125″ standard
  • 120 or 277 volt standard

Available in fluorescent T5 and T8 or long-life LED with high efficiency drivers.

Sizes:

  • 1′ X 4′ With 2 Bulbs
  • 2′ X 2′ With 2 Bulbs
  • 2′ X 4′ With 2, 3, Or 4 Bulbs
  • 6′ X 4′ With 2 Bulbs

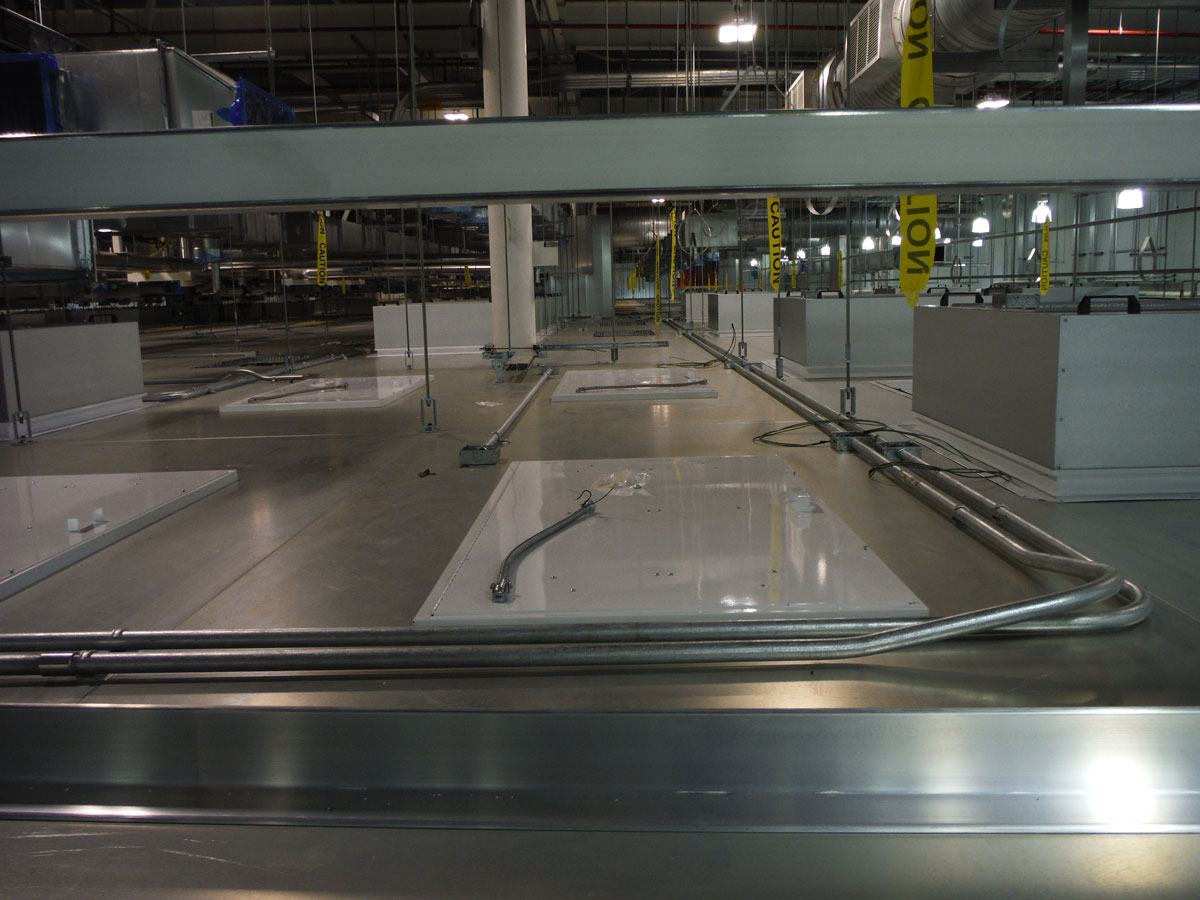

Walk-On Light Fixtures Features:

  • Galvanized reinforced steel housing tested to 200 lbs walk-on-load
  • Top panel flips open 180 degrees for ease of maintenance
  • Two safety rails to prevent fall through when top panel is open for maintenance
  • 2”, 3” and 5” ceiling panel thickness available
  • Available in Fluorescent T8 and T5 or LED
  • Neoprene gasketing
  • Clear, prismatic lens at 0.125” standard
  • 120 or 277 volt standard
  • UL Listed

Sizes:

  • 1’ X 4’
  • 2’ X 2’
  • 2’ X 4’

Teardrop Fixtures Features:

  • Teardrop design minimizes air flow disruption
  • Mounts conveniently on T-bar
  • Milk white acrylic lens with internal linear prism
  • Clear acrylic lens (optional)
  • Lens easily removes for lamp maintenance
  • Available with trigger start, rapid start & bi-axial lamps
  • Tested to meet Class 100 (ISO 5) standard
  • Tested to meet Class 1 (ISO 3) optional

Sizes:

  • 24″ With 1 Bulb
  • 48″ With 2 Bulbs
  • 36″ With 1 Bulb
  • 72″ With 2 Bulbs
  • 48″ With 1 Bulb
  • 96″ With 2 Bulbs
  • 60″ With 1 Bulb

Flow Thru Fixtures Features:

  • Extruded aluminum door frame with mitered corners
  • 1/2” x 1/2” white plastic louver
  • Air flows through top mounted filter
  • Open top unit allows for easy replacement of filters
  • Compatible with most T-bar systems
