Client: Corevalve, Division of Medtronics

Project Details

About:
Leading Global Heart Valve Company
Location:
Irvine, California
Project:
5,000 square-feet of ISO 7 Class 10,000 Cleanroom, as well as ISO 6 Class 1,000 Cleanroom
Project Type:
Stick-Built Cleanroom
Industry:
Medical Device
Completed:
February, 2009
Architect:
Align Architects
Approximate Value:
$1,400,000

Project Highlights

  • Drywall Perimeter with Epoxy Topcoat
  • Dual Plenum Ceiling, with CRW Power-T and Unistrut Upper Grid
  • Down-Draft Exhaust Tables Integrated into the HVAC Design
  • Mechanical System, Temperature/Humidity Control, Exhaust Enthalpy Recovery Wheels
  • Storefront Style Doors, Automatic Sliding Doors, Red-Green Light Entry System

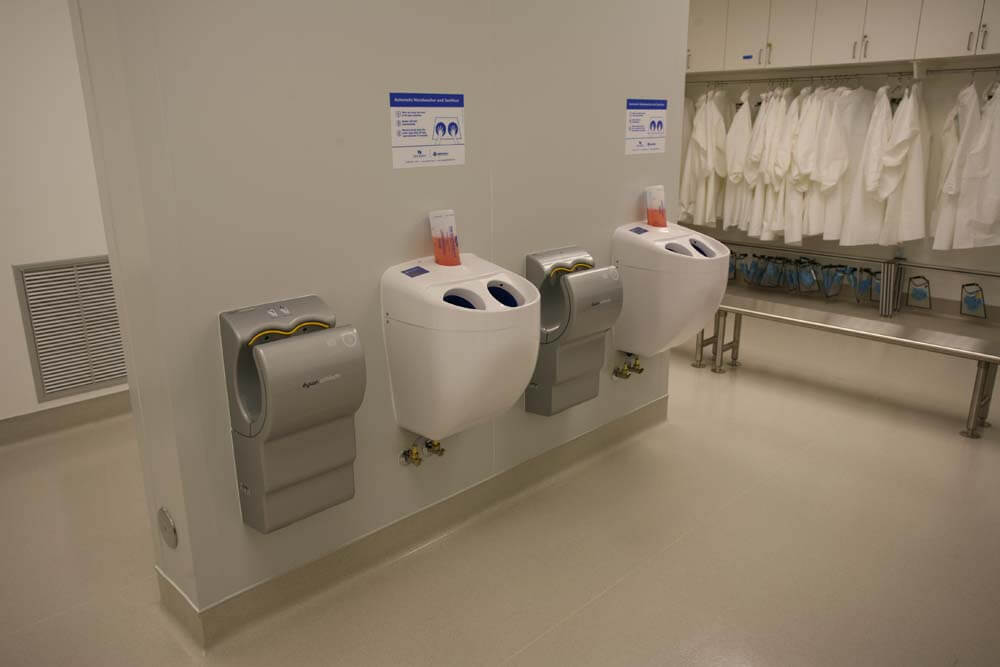

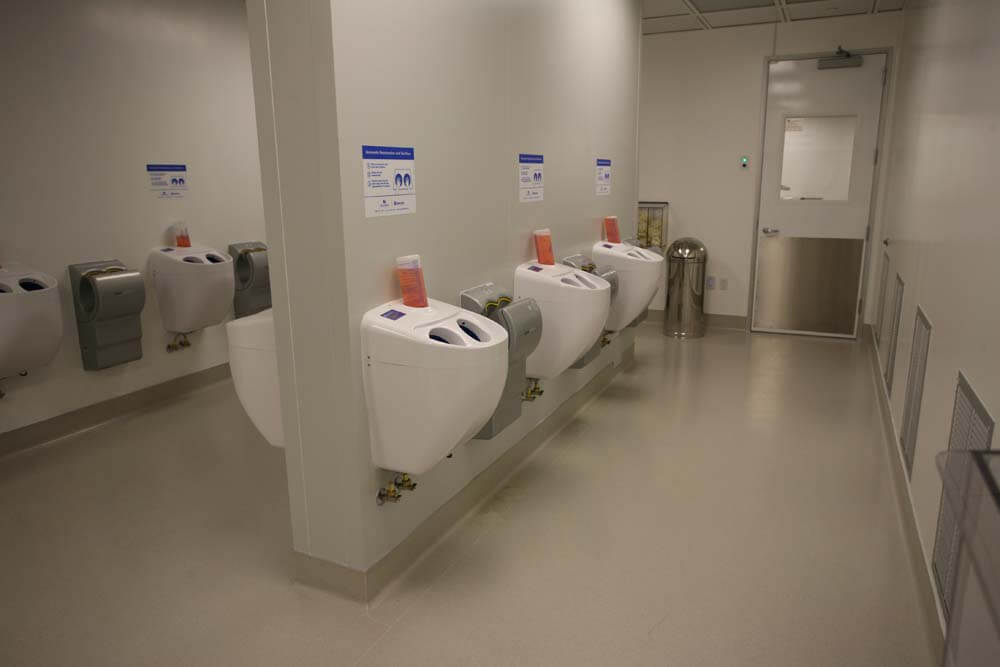

  • Meritech Hand-Wash System with Dyson Dryers
  • Unique Tank and Sink Exhaust Collars to Capture Fumes
  • PVC Floor, Heat-weld and Self-cove
  • Data Loggers, CFR 21 Compliant Monitoring System
  • GMP Documentation
  • Testing and Certification
Client

Corevalve, Division of Medtronics

Project Gallery
